BEST Repedal
250 Conversion Kit
250 Conversion Kit
Regular price
$923.07 USD
Regular price
$0.00 USD
Sale price
$923.07 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
|

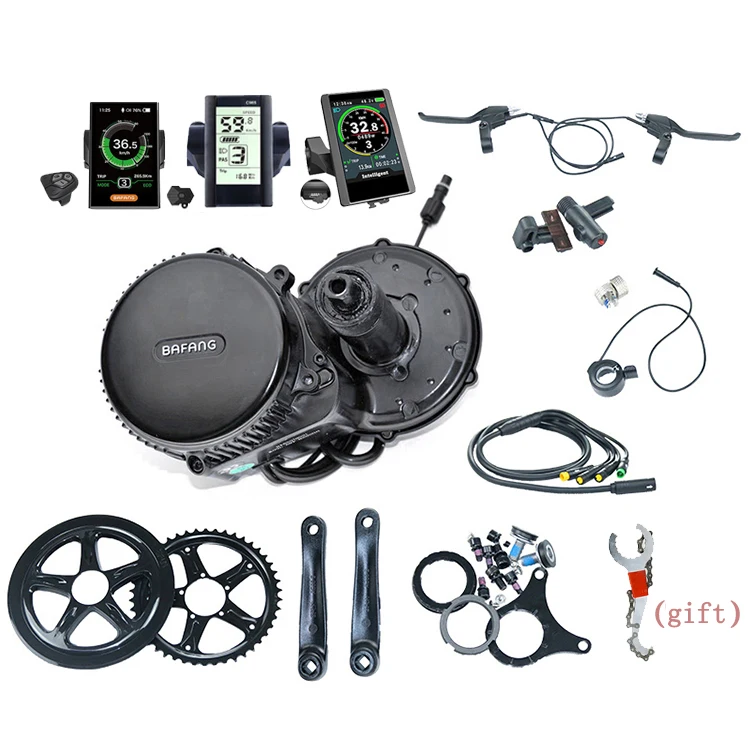

bafang 8fun e bike motor 36v 250w
|
1 set
|
|
Brake Levers (can be changed to Hydraulic Brake Sensors for Free in China, Optional)
|
1 pair
|
|
Crank
|
1 pair
|
|
Chain wheel (BBS01, 44T/46T/48T/52T Optional, 46T default)
|
1 pair
|
|
Thumb Throttle
|
1 set
|
|
Speed Sensor
|
1 set
|
|
1 to 4 EB-BUS Cable
|
1 pc
|
|
Display C965/850C/C18
|
1pc
|
|
Nuts
|
1 set
|
|
Bafang Tool(Gift)
|
1pc
|
Product Paramenters
|
Product
|
bafang 8fun e bike motor 36v 250w
|
|
Model type
|
36V BBS01B/BBS01
|
|
Power
|
250W
|
|
Voltage
|
36V
|
|
Controller Current
|
15A
|
|
No Load Speed(RPM)
|
83-87
|
|
Load Speed(RPM)
|
78-83
|
|
MAX Torque
|
80 N.m
|
|
Efficiency
|
> 80%
|
|
PAS SENSOR
|
Speed Sensor
|
|
Reduction Ratio
|
1 : 21.9
|
|
Centification
|
CE/EN 14764/ROHS
|
|
Waterproof Grade
|
IP65
|
|
Net Motor Weight
|
6.5kg
|
|
Bracket bottom length
|
68mm
|
|
Motor Operation Temperature
|
-20℃-45℃
|
|
Display Working Temperature
|
-20℃-80℃
|
|
Warranty Time
|
12 months quality warranty(warranty isn't valid for any damage due to wrong operation)
|
|
Accessories
|
30 days quality warranty(warranty isn't valid for any damage due to wrong operation)
|
Note
1) If your brake lever is Hydraulic Brake and you choose to ship it from China.We can upgrade the ebrake to brake sensor.Pleaseleave a message when you place the order.
2) We supply 44T 46T 48T 52T chain wheel（The default is 46T） If you need replace.Please also leave a message.Thanks.
3) If you need a label sticker of 36V 250W.Please tell me .We can send the sticker to you.
4) This kit is not for Carbon fiber bicycle.
5) If your country is Norway, please send your address and zip code to check if there is battery service to your city before you order this e-bike conversion kit with battery.
6) Battery and motor will send separately and you will receive 2 parcels, we will give you 2 tracking numbers too!
7)According to different country and region, battery parcel will delay 7-15 days to arrive.
Tips
Our motor mainly uses DHL transportation, and some countries use DPD transportation; the main
battery transportation is UPS and DPD. Overseas warehouses can be shipped with GLS.
battery transportation is UPS and DPD. Overseas warehouses can be shipped with GLS.
If your area is in a remote area, we will charge you a certain amount of remote service fees.
If your address is in an island,please contact us before order, so that we can
check whether we can arrange shipping to you.
check whether we can arrange shipping to you.
Solution
*You can pay the postage for free, but the amount is relatively large, it is more expensive.
* Do you have relatives or friends living in a distant city? (We can send it to him for free, then ask him to
send the goods to you. That would be a good choice)
send the goods to you. That would be a good choice)
